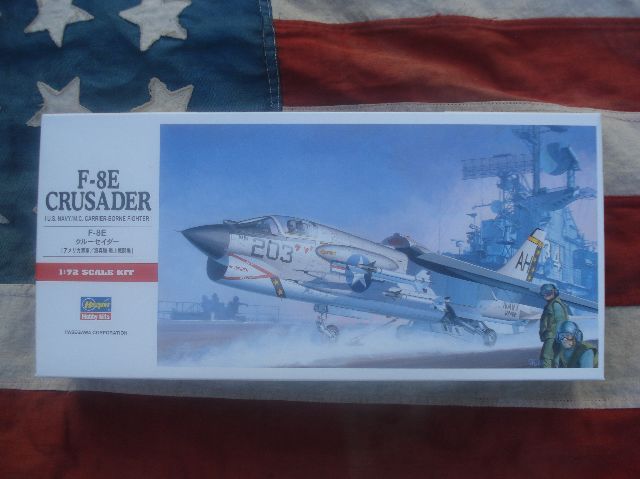

F-8E Crusader
The Vought F-8E was central to the Tonkin Gulf incident, which led to America's direct intervention in the Southeast Asian crisis, when on August 2, 1964, aircraft defended US Navy units from attack by North Vietnamese motor torpedo boats. Four Crusaders of the VF-53 Squadron from the aircraft carrier USS Ticonderoga, sunk an enemy vessel with missiles and gunfire, thus initiating a war that did not end until 1973.
From 1964 to 1969, during which time the Crusaders were gradually replaced on US Navy aircraft carriers by F-4B Phantoms, the F-8s, designed as daytime supersonic fighters, were also largely employed in strike missions mostly over North Vietnam, carrying up to 5,000 lbs (2,268 kg) of bombs under the wings. The first encounter between F-8Es and MiG-17s took place on July 12, 1967, and after that date the Crusaders frequently took on the North Vietnamese fighters, emerging from battle with a tally of fifteen MiG-17s and three MiG-21s shot down in dogfights, for the loss of only three planes. However, another 53 F-8Es and F-8Js fell victim to North Vietnamese anti-aircraft batteries, and a further 58 were destroyed while in action as a result of various causes.
The first daytime supersonic carrier based interceptor, the Crusader was conceived in 1952, built to the order of the US Navy. The prototype flew on March 25, 1955, successfully testing the original solution of a wing of variable incidence, designed to reduce the velocity and improve landing capability. Production started soon afterward and, up to 1965, 1,259 machines of various series were built, increasingly powerful and up-to-date. The principal types were the F-8A interceptor (first flight September 30, 1955, with 318 machines), which went into service in March 1957; the F-8C air-superiority (187 machines, first flight August 20, 1958); and the F-8D all-weather fighter (152 planes, first flight February 16, 1960). The final version was the F-8E (first flight June 26, 1964), also designed as an all-weather fighter, of which 286 were built. The Crusader remained in front line service until the late 1970s, thanks to a massive modernization program starting in 1966, involving 375 planes from all series: 136 F-8Es, in particular, were transformed into F-8Js, the modifications applying mainly to certain structural components, the wings and the electronics.
Technical Specifications
Aircraft: Vought F-8E
Year: 1964
Type: fighter
Manufacturer: Chance Vought Inc.
Engine: Pratt & Whitney J57-P-20A
Power: 18,000 lb (8,165 kg)
Wingspan: 35ft 8in (10.87m)
Length: 54ft 3in (16.53m)
Height: 15ft 9in (4.80m)
Wing area: 375sq ft (34.83m²)
Max take-off weight: 34,000 lb (15,422kg)
Max speed: 1,120mph at 40,000ft (1,802km/h at 12,192m)
Service ceiling: 58,000ft (17,678m)
Crew: 1
Load-armament: 4x20mm cannon; 5,000 lb (2,267kg)

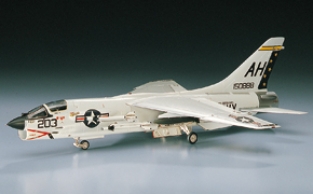

Drie uitvoeringen mogelijk;
- U.S.Navy VF-162 "HUNTERS"
- U.S.M.C. VMF (AW)-312 "CHEKERBOARDS"
- French Navy, Flottille 12F (VF-12).
Aantal onderdelen: 58 stuks.
Afmetingen:
- Lengte 233mm
- spanwijdte 144mm.
Features:
- Cockpit includes instrument panel
- Detailed landing gear
- Waterslide decals
- Illustrated assembly guide.
